SPECIFICATIONS

AC Charging Input: 1000W - 1500W

Application: Solar Power Storage

Battery Core manufacturer: Other

Battery Number: 1

Brand Name: OSCAL

Bundle: Bundle 2

Certification: CE,FCC,UL

Connection: Other

Display screen: Yes

High-concerned chemical: None

Model Number: powermax 2400

Net Weight: 10 KG - 30 KG

Nominal Capacity: 1872wh

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: 58*37*41cm

Solar Charging Input: 500W - 1000W

Type: LiFePO4

Battery Info :

Capacity :1872Wh

Scalability:1872Wh-20592WhPowerMax 2400+Up to 10*BP2400

Type:LiFePO4,(Lithium lron Phosphate)

Life Cycles:3500+ Cycles to 80% Original Capacity

Shelf-life:Recharge to 80% Every 3-6 Months

Management System:BMS

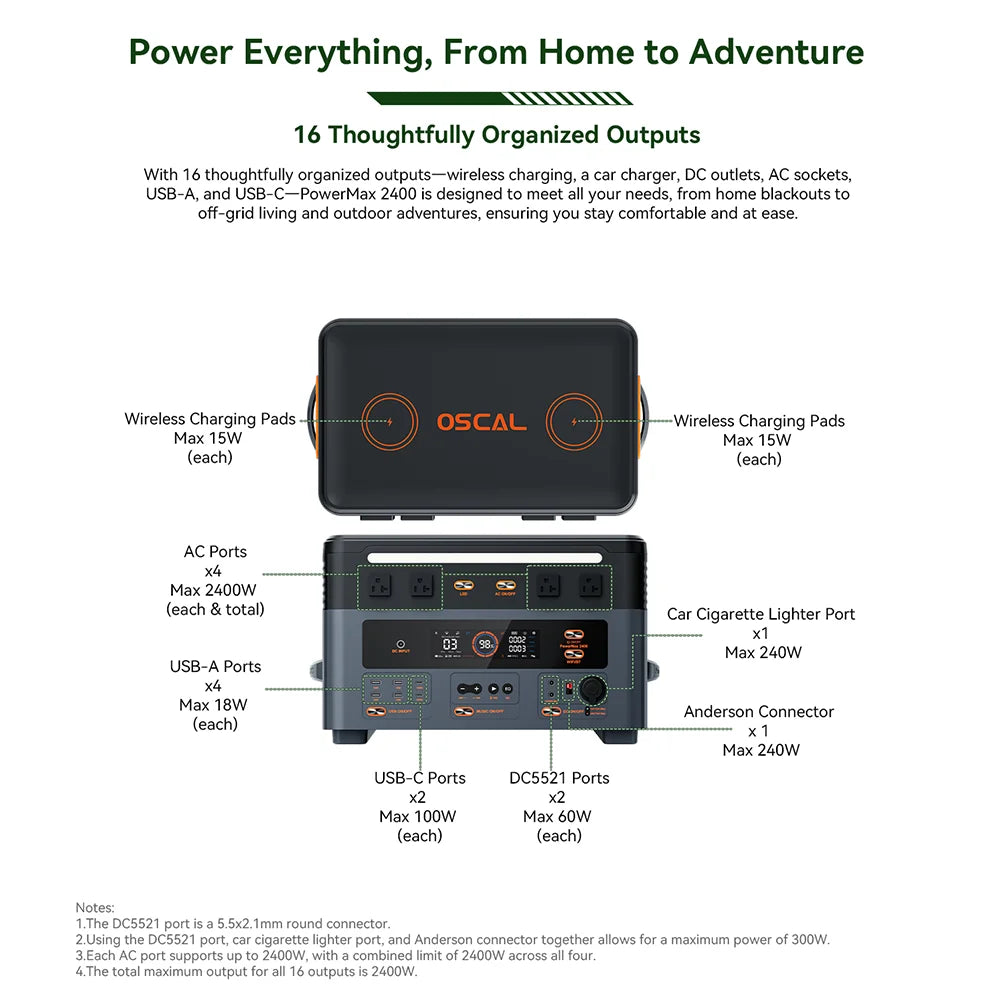

Output:

Power:2400W, Surge Power. 4800W

Inverter Type:Pure Sine Wave

AC Outlets:4x 2400W Max

USB-A Ports:4x 18W

USB-C Ports:2x 100W Max

DC5521 Ports:2x 60W

Car Cigarette Lighter Port:1x 240W Max

Anderson Connector:1x 240W Max

Wireless Charging Pads:2x 15W

Input:

AC Fast Charging:1.6 Hours(Full Charge)

1400w(Max)

Pair with PM200 for 1,500W Max.

Solar Charging:2.8 Hours(Full Charge) 800W(Max)

12/24V CarOutlet(120W/240W):

24V: 9 Hours(Full Charge)

12V: 18 Hours(Full Charge)

General:

Pass-through Charging:Yes

UPS Switching Time:0.01s

Dimensions (L x W' x H):47x29x32.6cm/18.5x11.4x12.8in

Weight:Approx. 25.5Kg/53.8lbs

Operating Temperature:-4'F to 113°F(-20^C-45'℃)

Storage Temperature:-14-113℃(-10’C-45℃℃)

Warranty:3 Years

Certifications:Europe:CE/LVD(EN62368-1)CE/EMCIEN55032/35)RED(ETSI EN 303 417: ETSI EN 301 489-1:ETSIEN301 489-3:EN 62479)ROHS (EU)

Japan:PSE/METI

America:FCCIDDOECECFCC (Part 15C)JL

[Rugged Power Stations]-The PowerMax 2400’s durable ABS+PC construction can withstand vertical drops up to 0.8m. It’s designed to handle diverse environments, from wet lakesides to dusty construction sites, by effectively preventing the ingress of solid particles and vertical water splashes. Whether you’re exploring glaciers in Alaska or deserts in the Sahara, it operates reliably in temperatures from -4°C to 113°C. Additionally, the PowerMax 2400 features five LED light modes and can transmit information using Morse code.

[1872Wh high capacity. 2400W Output]-It has a capacity of 1872Wh and provides 4*AC output, 2400W(Surge 4800W), Suports DC/AC Bi-Directional Inverter 120V/240V Dual Voltage Output,ensuring that any appliance can find its match with this device. In the case of an unplanned outage, all the charging outlet demands of the family will be satisfied with its 14 outlet sources. Whether camping, working outdoors, or facing an emergency, this solar generator can provide stable power.

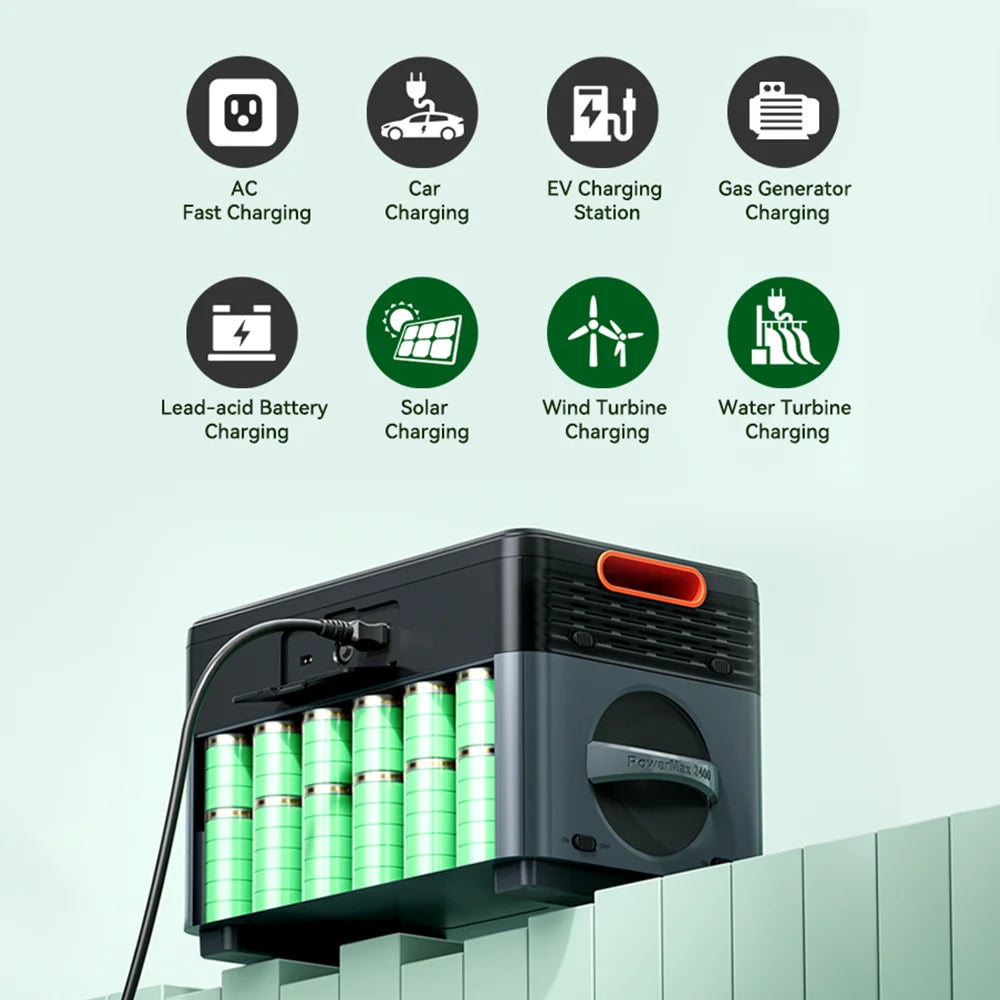

[1.5 Hours Fast Charging]-Featuring dual charging via solar panels and AC power, our power station achieves a full charge in just 1.5 hours. With an alternative 1.5-hour full charge using AC charging, EV stations charging, or generators charging, it also supports five other charging methods to adapt to various scenarios, meeting your power needs effectively.

[Long-Lasting LiFePO4 Battery]-Our portable power station relies on durable and stable LiFePO4 batteries supported by an advanced eight-layer safety BMS. With protections against overcharge, over-discharge, over-voltage, over-current, short-circuit, and temperature fluctuations, enjoy peace of mind while experiencing up to 3500 charge and discharge cycles, ensuring a service life of up to 25 years.

[5-8 ms Fast Switchover]-Equipped with UPS uninterruptible power supply, when there is a power outage or power interruption, it will automatically switch to the built-in battery power supply within 5-8 ms., keep your equipment up and running. Perfect for home emergencies, network equipment, and outdoor tasks requiring uninterrupted power supply.

[Smart Remote Control]-Download the OSCAL application on your smartphone to effortlessly pair and control the portable power station through Wi-Fi or Bluetooth. Monitor power usage and execute remote commands with ease
